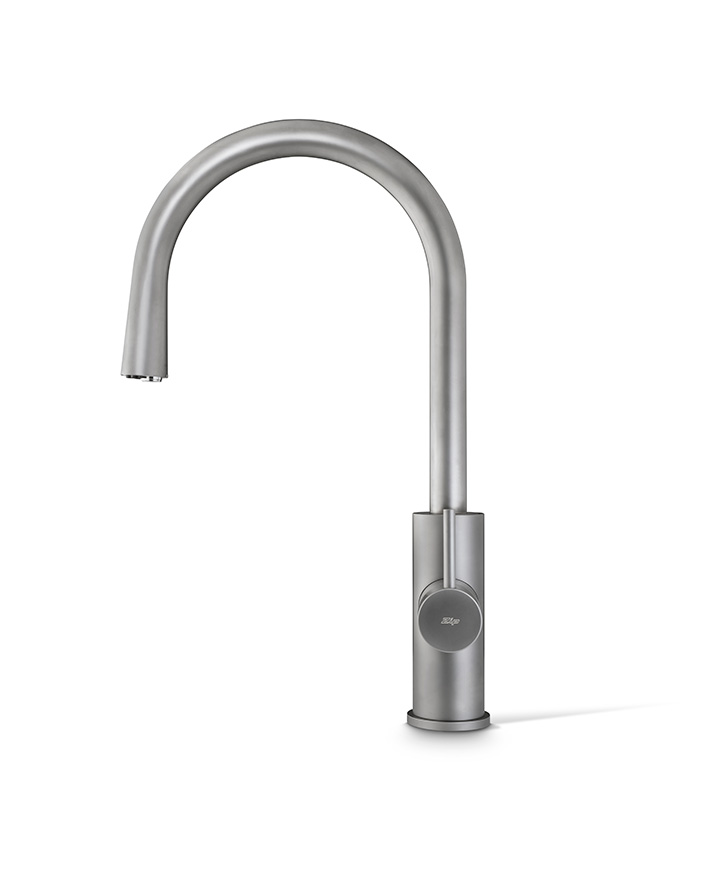

HydroTap G5 BCHA60 Celsius All-In-One Arc Gunmetal

Click to Zoom

H57704Z09AU
Filtered Boiling
Filtered Chilled
Unfiltered Hot & Ambient

Zip HydroTap Design Range CELSIUS All-In-One Boiling & Chilled Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required). The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, SteriTouch® antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration. Easy to install integrated ventilation tray included.

Finish

View our range of finishes for this product.

Manufacturing Code
H57704Z09AU
Capacity
Commercial
Disability Options
Unavailable
Boiling Cups per hour
160
Chilled Cups per hour
175
Tap
Zip HydroTap Design Range CELSIUS All-In-One ARC Tap (Gunmetal)
Water Pressure
Min 170kPa - Max 700kPa
Water Connection
1/2" BSP (G1/2)
Water Supply Requirements
Cold and Hot
Water Valves
Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating
2.1kW 220-240V 50Hz
Power Supply
1 x 10 Amp socket outlet
Dimensions
W395mm x D464mm x H333mm
Product Approvals
WaterMark, RCM, ARC
Wels Rating
5 Star, 6.0 litres
Warranty
5 years (appliance warranty 36 months plus additional 24 months tank warranty)
