Zip HydroTap G4 5in1 BCSHA 160/175 Arc Mixer
Click to Zoom
View our range of finishes for this product.
This product is not available for online sale. Please contact Zip for more information.
Boiling
Chilled
Sparkling
Hot & Ambient
Zip HydroTap 5in1 Boiling, Chilled, Sparkling, Filtered water plus Hot and Cold washing up water from two seperate taps. The appliance features a single under bench command centre including full colour interactive touch screen display with pin code protection, 2 boiling water safety modes, 3 energy saving modes including sensor activated "sleep when its dark", 0.2 micron water filtration and a refillable CO2 cylinder.
- Manufacturing Code
- 5253AU0S0AN1C
- Capacity
- Commercial
- Disability Options
- Unavailable
- Boiling Cups per hour
- 160
- Combined Chilled and Sparkling Cups per hour
- 175
We’re here to help. Contact us for advice or more details.
1800 42 43 44 Email Us Find a RetailerProduct Details
Specifications
- Tap
- Zip HydroTap CLASSIC Tap (Chrome)
- Water Pressure
- Min 250kPa - Max 700kPa
- Water Connection
- 12.7mm BSP
- Water Supply Requirements
- Cold
- Water Valves
- Integrated 500kPa Pressure limiting valve and Dual Check Valve
- Power Rating
- 2.3kW 220-240V 50/ 60Hz
- Booster Power Rating
- n/a
- Power Supply
- 1 x 10Amp GPO
- Dimensions
- H333mm x W394mm x D464mm
- Product Approvals
- WaterMark, CE, RCM, ARC
- Wels Rating
- 5 Star, 5.5 litres
- Warranty
- 5 years (appliance warranty 36 months plus additional 24 months tank warranty)
Installation
Installation Requirements
"1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.
3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.
4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com"
- Installation Detail
Certifications
- Filter Performance Images
- Health Safety Image
- Environment ISO Image
- Quality ISO Image
- ARC Image
- CE Image
- RCM Image
- Watermark
- Environmental Product Declaration
- WELS Certification
Finishes
Choose your favourite HydroTap in a contemporary colour to match your style and kitchen design. All our HydroTaps are Made To Order, please contact Zip for lead times.

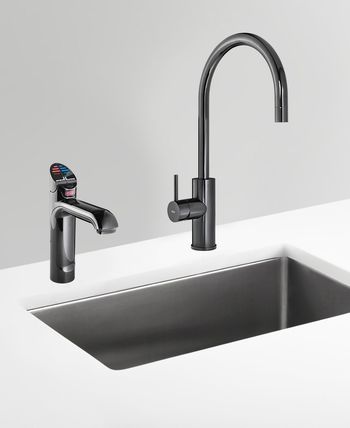

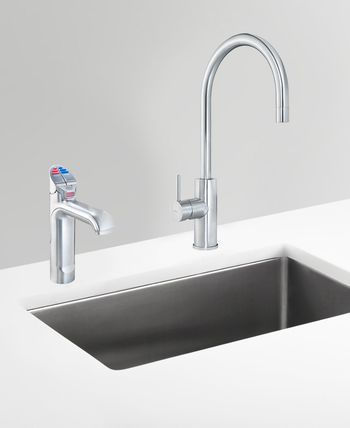

Bright chrome, brushed chrome, matte black and gloss black are our classic and timeless finishes available on every HydroTap style.
Our new platinum range premium finishes include gold, rose gold, nickel, platinum and gunmetal in polished and brushed finishes. Platinum finishes are available on our design range HydroTaps only (Arc, Cube, Elite and Celsius).
Disability Options
A number of our HydroTap G4 models can be adapted for users with limited mobility or impaired vision in line with DDA (Disability Discrimination Act) Requirements.
Standard HydroTap levers.
Includes oversized levers or Braille lever-covers to provide easier use.
