Zip HydroTap Elite BC 240/175

Have more questions?

We’re here to help. Contact us for advice or more details.

Product Details

Zip HydroTap Design Range Boiling, Chilled, Filtered water appliance featuring a single under bench command centre including full colour interactive touch screen display with pin code protection, 2 boiling water safety modes, 2 energy saving modes and 0.2 micron water filtration.

Specifications

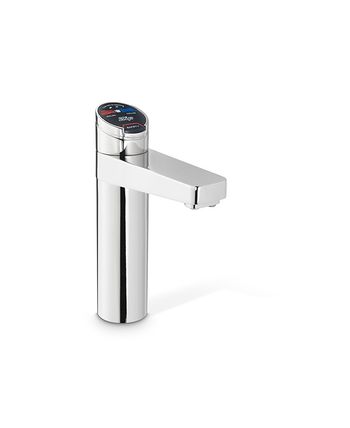

Tap: Zip HydroTap Design Range ELITE Tap (Chrome)
Water Pressure: Min 200kPa - Max 700kPa
Water Connection: 12.7mm BSP
Water Supply Requirements: Cold
Water Valves: Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating: 2.2kW 220-240V 50/ 60Hz
Booster Power Rating: Zip HydroTap Booster 2.2kW 220-240V 50/ 60Hz
Power Supply: 2 x 10Amp GPO's (or 1 x 10Amp Double GPO)
Dimensions: H333mm x W394mm x D464mm
Product Approvals: WaterMark, CE, RCM, ARC
Warranty: 5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

Quick Guide
Instruction Manual
User Manual

Brochures

Product Brochure

Installation

Installation Requirements

"1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.
2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.
3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.
4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com"
