HydroTap G5 BCSHA60 5-in-1 Cube tap with Cube Mixer Chrome

Confirm Purchase

Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase

Please purchase a HydroTap first

Click to Zoom

Find a Retailer Request A Quote

Finish

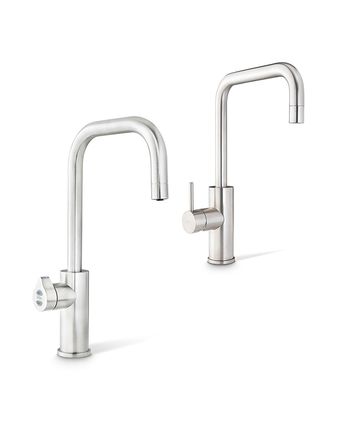

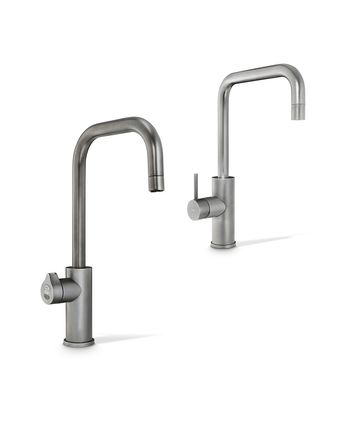

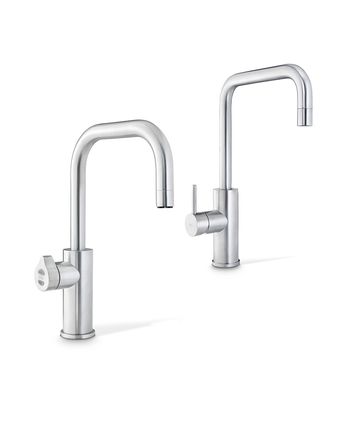

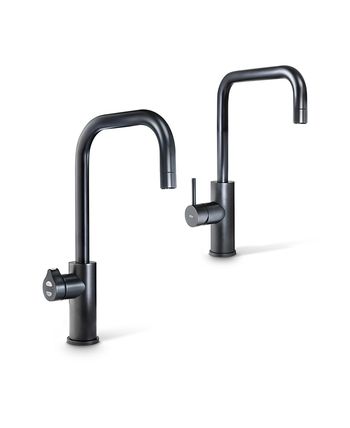

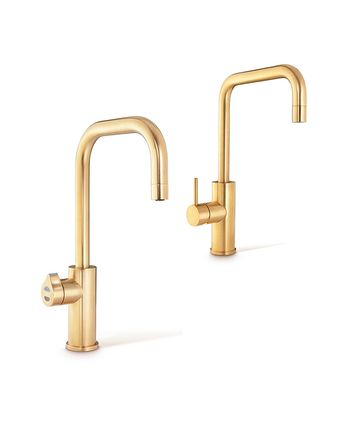

View our range of finishes for this product.

This product is not available for online sale. Please contact Zip for more information.

Boiling

Chilled

Sparkling

Filtered

Hot & Ambient

Unfiltered

H53975Z00AU

Zip HydroTap Design Range 5 in 1 Boiling, Chilled, Sparkling, Filtered water plus Hot and Cold washing up water from two separate taps. This water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, SteriTouch® antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, 0.2 micron water filtration, and a refillable CO2 cylinder. Easy to install integrated ventilation tray included.

Manufacturing Code: H53975Z00AU
Capacity: Commercial
Boiling Cups per hour: 160
Combined Chilled and Sparkling Cups per hour: 175

Have more questions?

We’re here to help. Contact us for advice or more details.

1800 42 43 44 Email Us Find a Retailer

Product Details

Specifications

Tap: Zip HydroTap Design Range CUBE Tap (Chrome)
Water Pressure: Min 300kPa - Max 700kPa
Water Connection: 1/2" BSP (G1/2)
Water Supply Requirements: Cold
Water Valves: Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating: 2.15kW 220-240V 50Hz
Power Supply: 1 x 10 Amp socket outlet
Dimensions: W395mm x D464mm x H333mm
Product Approvals: WaterMark, RCM, ARC
Wels Rating: 5 Star, 5.5 litres
Warranty: 5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

Material Safety Data Sheet
Quick Guide
Instruction Manual
User Manual

Brochures

Product Brochure

Installation

Installation Requirements

1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations. 2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product. 3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation. 4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service. 5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit. 6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com
