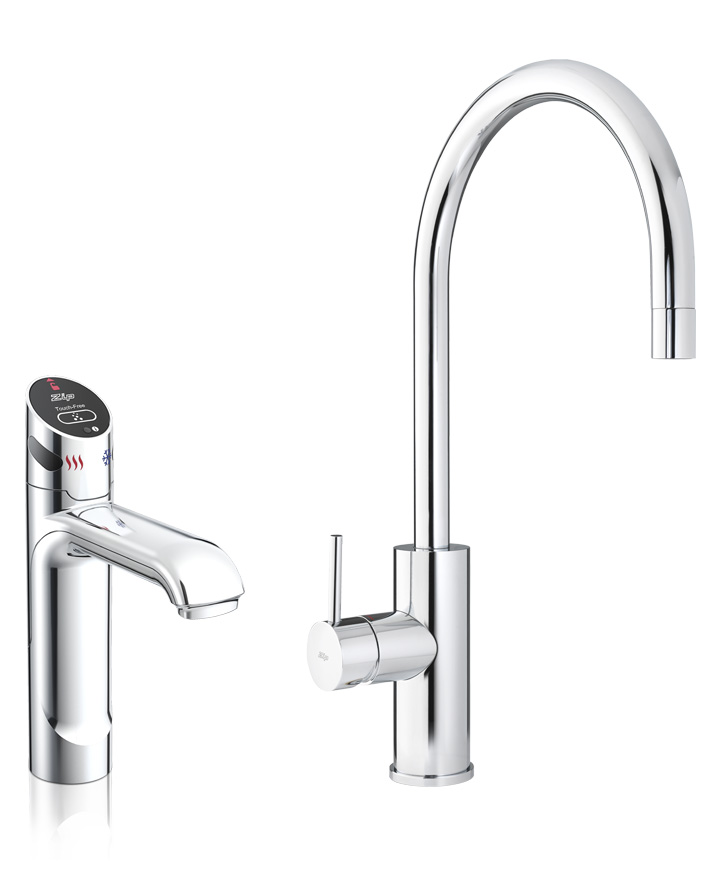

HydroTap G4 BCH160/175 4in1 Touch Free Wave Tap Arc Mixer Chrome
Click to Zoom
HTW823
Filtered
Boiling
Filtered
Chilled
Unfiltered
Hot & Ambient
Filtered
Boiling
Filtered
Chilled
Unfiltered
Hot & Ambient
Zip HydroTap 4 in 1 Boiling, Chilled, Filtered drinking water plus Hot and Cold washing up water from two separate taps. The appliance features a single under bench command centre including full colour interactive touch screen display with pin code protection and 0.2 micron water filtration. With smart infrared touch-free operation tap.
- Manufacturing Code
- 5261AU0W0AN1C
- Capacity
- Commercial
- Boiling Cups per hour
- 160
- Chilled Cups per hour
- 175
Specifications
- Tap
- Zip HydroTap Touch-Free Wave tap (Bright Chrome)
- Water Pressure
- Min 250kPa - Max 700kPa
- Water Connection
- 12.7mm BSP
- Water Supply Requirements
- Cold
- Water Valves
- Integrated 500kPa Pressure limiting valve and Dual Check Valve
- Power Rating
- 2.3kW 220-240V 50/ 60Hz
- Power Supply
- 1 x 10Amp GPO
- Dimensions
- H333mm x W394mm x D464mm
- Product Approvals
- WaterMark, CE, RCM, ARC
- Wels Rating
- 5 Star, 5.5 litres
- Warranty
- 5 years (appliance warranty 36 months plus additional 24 months tank warranty)
HTW823 Related Products
Finishes
Choose your favourite HydroTap in a contemporary colour to match your style and kitchen design. All our HydroTaps are Made To Order, please contact Zip for lead times.
Standard
Bright chrome, brushed chrome, matte black and gloss black are our classic and timeless finishes available on every HydroTap style.
Platinum
Our new platinum range premium finishes include gold, rose gold, nickel, platinum and gunmetal in polished and brushed finishes. Platinum finishes are available on our design range HydroTaps only (Arc, Cube, Elite and Celsius).
Disability Options
A number of our HydroTap G4 models can be adapted for users with limited mobility or impaired vision in line with DDA (Disability Discrimination Act) Requirements.
Standard
Standard HydroTap levers.
Accessible
Includes oversized levers or Braille lever-covers to provide easier use.
