HydroTap G5 UltraCare BCU40 UV Non-Carbon Filter Touch-Free Wave Tap Chrome

Confirm Purchase

Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase

Please purchase a HydroTap first

Confirm Purchase

Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

Is the Zip unit onsite?
Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
Water available to unit
Is stone bench cutting required?
Will your Zip unit be installed over a font or sink?
Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Find a Retailer Request A Quote

Finish

View our range of finishes for this product.

This product is not available for online sale. Please contact Zip for more information.

Boiling

Chilled

Filtered

H5W7U1Z00AUC

Zip HydroTap UltraCare Boiling, Chilled Filtered water tap features antimicrobial protection impregnated into key water paths for enhanced hygiene, LED UV-C disinfection, 0.2 micron carbon free internal filtration, Life cycle maintenance plan in a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, and 100% water efficient air cooled technology. Easy to install integrated ventilation tray included.

Manufacturing Code: H5W7U1Z00AUC
Capacity: Commercial
Number of people: 21-40
Boiling Cups per hour: 160
Chilled Cups per hour: 125

Have more questions?

We’re here to help. Contact us for advice or more details.

1800 42 43 44 Email Us Find a Retailer

Product Details

Specifications

Tap: Zip HydroTap Touch-Free Wave Tap (Chrome)
Water Pressure: Min 170kPa - Max 700kPa
Water Connection: 1/2" BSP (G1/2)
Water Supply Requirements: Cold
Water Valves: Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating: 1.97kW 220-240V 50Hz
Power Supply: 2 x 10 Amp socket outlet
Dimensions: W280mm x D478mm x H333mm
Product Approvals: WaterMark, RCM, ARC
Warranty: 5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

Quick Guide
Tap Operation Label
Instruction Manual
User Manual

Brochures

Product Brochure

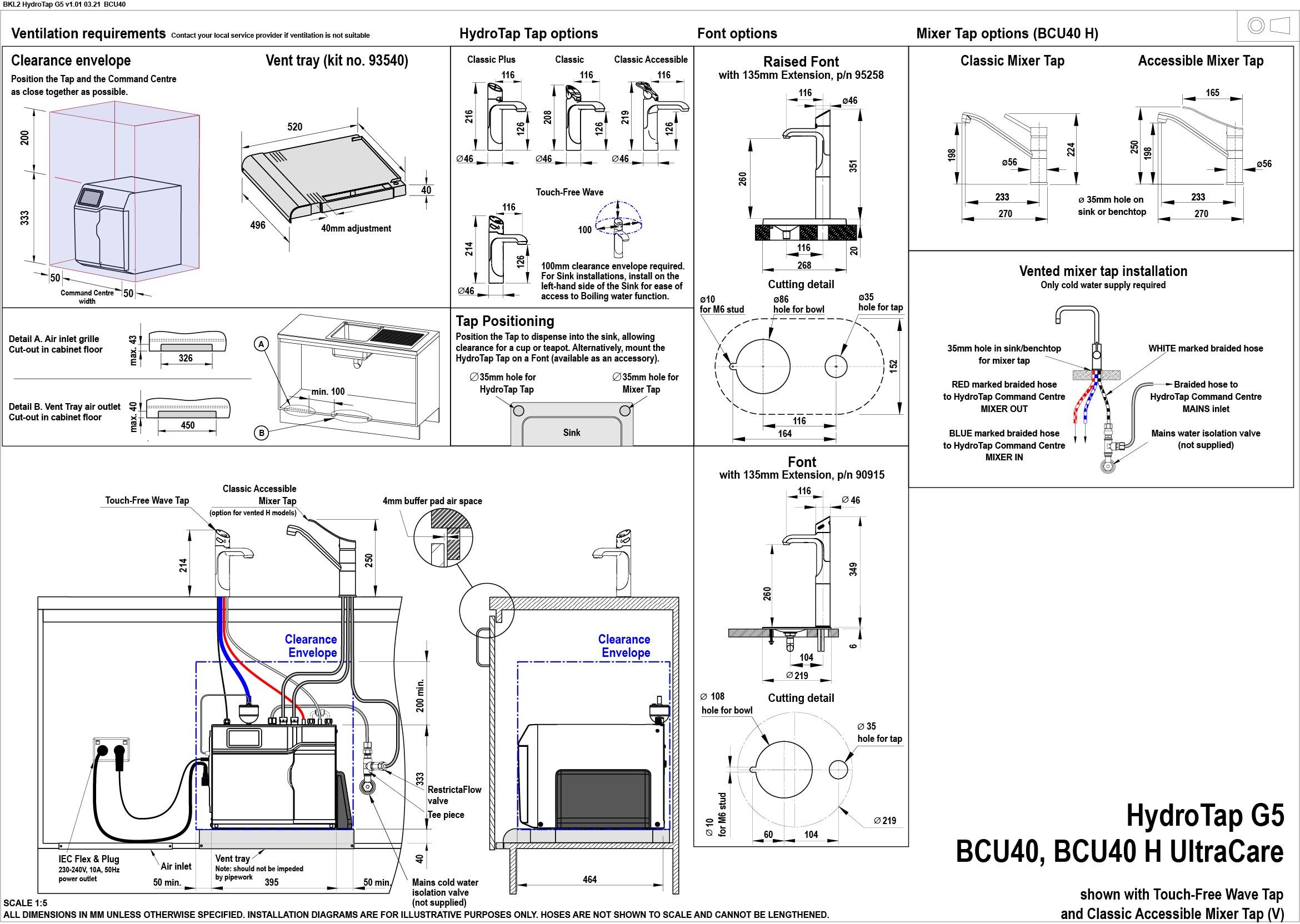

Installation

Installation Requirements

1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.

2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.

3. Discrete cabinetry cut outs are required for airflow. 40mm minimum clearance on cupboard base overhang required otherwise alternative installation options are available.

4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.

5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.

6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com/book-service-visit
