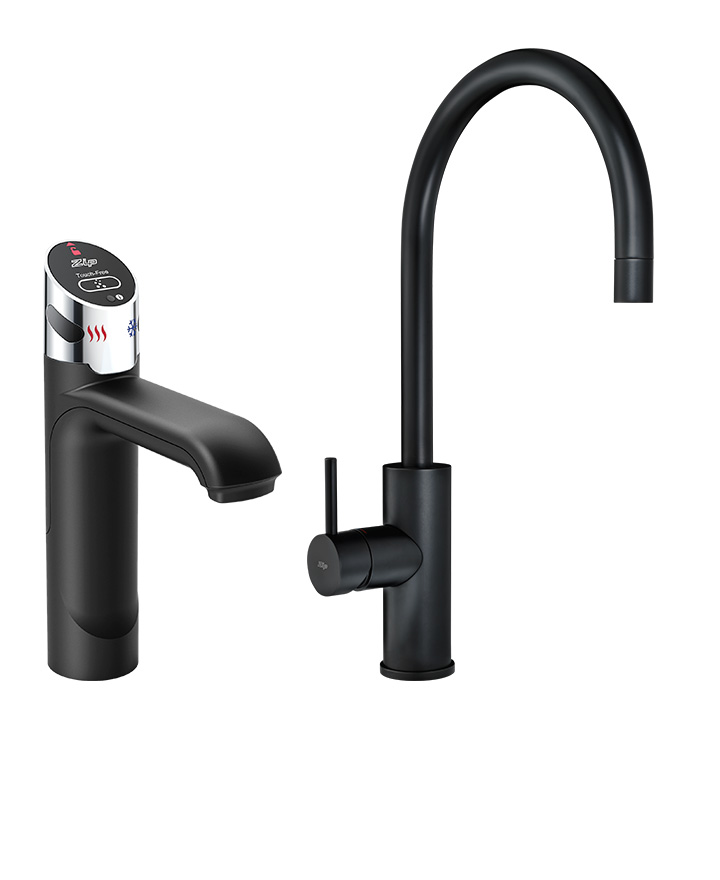

HydroTap G5 BCSHA100 5-in-1 Touch-Free Wave tap with Arc Mixer Chrome

Confirm Purchase


Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase


Please purchase a HydroTap first

Ok

Confirm Purchase


Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

  • Is the Zip unit onsite?
  • Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
  • Water available to unit
  • Is stone bench cutting required?
  • Will your Zip unit be installed over a font or sink?
  • Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Find a Retailer Request A Quote
Finish

View our range of finishes for this product.

This product is not available for online sale. Please contact Zip for more information.

Boiling
Chilled
Sparkling
Filtered
Hot & Ambient
Unfiltered
H5W876Z00AU

Zip HydroTap Touch-Free Wave 5 in 1 Boiling, Chilled, Sparkling, Filtered water plus Hot and Cold washing up water from two separate taps. The system uses smart infrared 100% touch-free operation that is activated with the Wave of a hand. The water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, 0.2 micron water filtration, and a refillable CO2 cylinder. Easy to install integrated ventilation tray included.

Manufacturing Code
H5W876Z00AU
Capacity
Commercial
Number of people
61-100
Boiling Cups per hour
240
Chilled Cups per hour
175
Combined Chilled and Sparkling Cups per hour
175

Product Details

Zip HydroTap Touch-Free Wave 5 in 1 Boiling, Chilled, Sparkling, Filtered water plus Hot and Cold washing up water from two separate taps. The system uses smart infrared 100% touch-free operation that is activated with the Wave of a hand. The water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, 0.2 micron water filtration, and a refillable CO2 cylinder. Easy to install integrated ventilation tray included.

Specifications

Tap
Zip HydroTap Touch-Free Wave tap (Chrome)
Water Pressure
Min 300kPa - Max 700kPa
Water Connection
1/2" BSP (G1/2)
Water Supply Requirements
Cold
Water Valves
Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating
2.15kW 220-240V 50Hz
Booster Power Rating
Zip HydroTap Booster 2.2kW 220-240V 50/60Hz
Power Supply
2 x 10 Amp socket outlets
Dimensions
W395mm x D487mm x H333mm
Product Approvals
WaterMark, RCM, ARC
Wels Rating
5 Star, 6 litres
Warranty
5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

  • Material Safety Data Sheet
  • Quick Guide
  • Tap Operation Label
  • Instruction Manual
  • User Manual

Brochures

  • Product Brochure

Installation

Installation Requirements

1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.

2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.

3. Discrete cabinetry cut outs are required for airflow. 40mm minimum clearance on cupboard base overhang required otherwise alternative installation options are available.

4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.

5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.

6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com/book-service-visit

  • Installation Layout 3D/2D DWG
  • Installation Detail

Certifications

Filter Performance Images
Filter Performance Data
Health Safety Image
Health Safety Download
Environment ISO Image
Environment ISO Download
Quality ISO Image
Quality ISO Download
ARC Image
ARC Download
CE Image
RCM Image
Watermark
Environmental Product Declaration Brochure
Environmental Product Declaration
WELS Certification
HydroTap Clean Safety Data Sheet

BIM Files

  • ArchiCAD Swift Globals Library
  • ArchiCAD Zip Water Library
  • Revit Family
  • Revit Virtual Showroom Project File
