HydroTap G5 BCHA100 4-in-1 Touch-Free Wave tap with Arc Mixer Chrome
Please purchase a HydroTap first
Upon purchasing this product, our customer care team will contact you to discuss the following requirements:
- Is the Zip unit onsite?
- Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
- Water available to unit
- Is stone bench cutting required?
- Will your Zip unit be installed over a font or sink?
- Sufficient space available in cabinetry - available in the product install guide
View our range of finishes for this product.
This product is not available for online sale. Please contact Zip for more information.

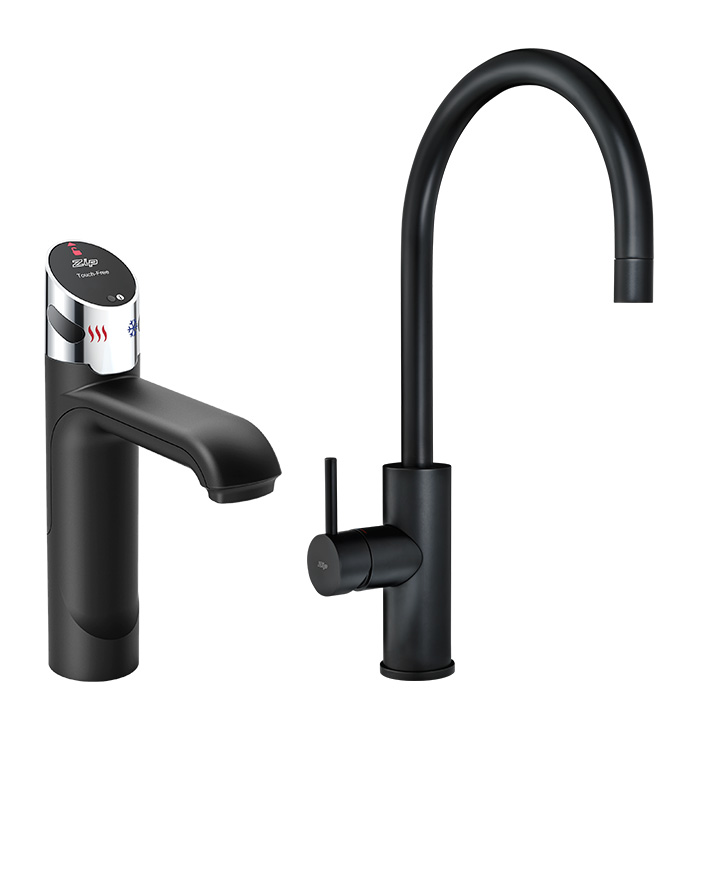

Zip HydroTap Touch-Free Wave 4 in 1 Boiling, Chilled, Filtered water plus Hot and Cold washing up water from two separate taps. The system uses smart infrared 100% touch-free operation that is activated with the Wave of a hand. The water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, SteriTouch® antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology and 0.2 micron water filtration. Easy to install integrated ventilation tray included.
- Manufacturing Code
- Number of people
- Boiling Cups per hour
- Chilled Cups per hour
We’re here to help. Contact us for advice or more details.1800 42 43 44 Email Us Find a Retailer
- Zip HydroTap Touch-Free Wave tap (Chrome)
- Water Pressure
- Min 300kPa - Max 700kPa
- Water Connection
- 1/2" BSP (G1/2)
- Water Supply Requirements
- Water Valves
- Integrated 500kPa Pressure limiting valve and Dual Check Valve
- Power Rating
- 2.1kW 220-240V 50Hz
- Booster Power Rating
- Zip HydroTap Booster 2.2kW 220-240V 50/60Hz
- Power Supply
- 2 x 10 Amp socket outlets
- W395mm x D464mm x H333mm
- Product Approvals
- WaterMark, RCM, ARC
- Wels Rating
- 5 Star, 5.5 litres
- 5 years (appliance warranty 36 months plus additional 24 months tank warranty)
- Installation Layout 3D/2D DWG
- Installation Detail
