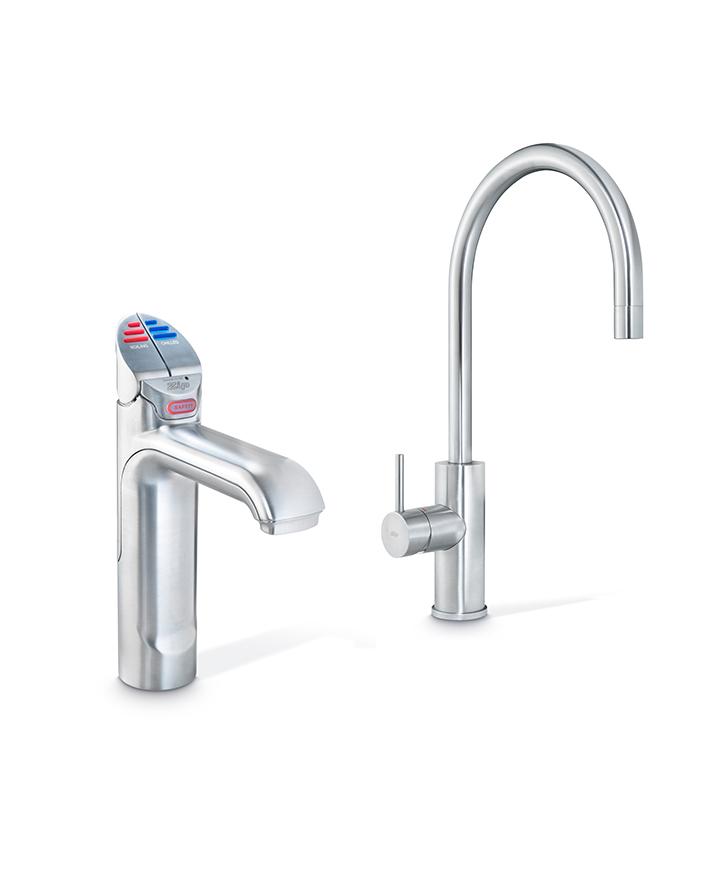

HydroTap G5 BCHA100 4-in-1 Classic tap with Arc Mixer Chrome

Confirm Purchase

Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase

Please purchase a HydroTap first

Click to Zoom

Find a Retailer Request A Quote

Finish

View our range of finishes for this product.

This product is not available for online sale. Please contact Zip for more information.

Boiling

Chilled

Filtered

Hot & Ambient

Unfiltered

H51824Z00AU

Zip HydroTap Classic 4 in 1 Boiling, Chilled, Filtered water plus Hot and Cold washing up water from two separate taps. The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including 2 boiling water safety modes, 3 energy saving modes including ON/OFF timers and sensor activated 'sleep when it's dark', 'Quiet' mode with automated intelligent fan speed adjustment, SteriTouch® antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration. Easy to install integrated ventilation tray included.

Manufacturing Code: H51824Z00AU
Capacity: Commercial
Boiling Cups per hour: 240
Chilled Cups per hour: 175

Have more questions?

We’re here to help. Contact us for advice or more details.

1800 42 43 44 Email Us Find a Retailer

Product Details

Specifications

Tap: Zip HydroTap CLASSIC Tap (Chrome)
Water Pressure: Min 300kPa - Max 700kPa
Water Connection: 1/2" BSP (G1/2)
Water Supply Requirements: Cold
Water Valves: Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating: 2.1kW 220-240V 50Hz
Booster Power Rating: Zip HydroTap Booster 2.2kW 220-240V 50/60Hz
Power Supply: 2 x 10 Amp socket outlets
Dimensions: W395mm x D464mm x H333mm
Product Approvals: WaterMark, RCM, ARC
Wels Rating: 5 Star, 5.5 litres
Warranty: 5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

Quick Guide
Instruction Manual
User Manual

Brochures

Product Brochure

Installation

Installation Requirements

1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations. 2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product. 3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation. 4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service. 5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit. 6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com
