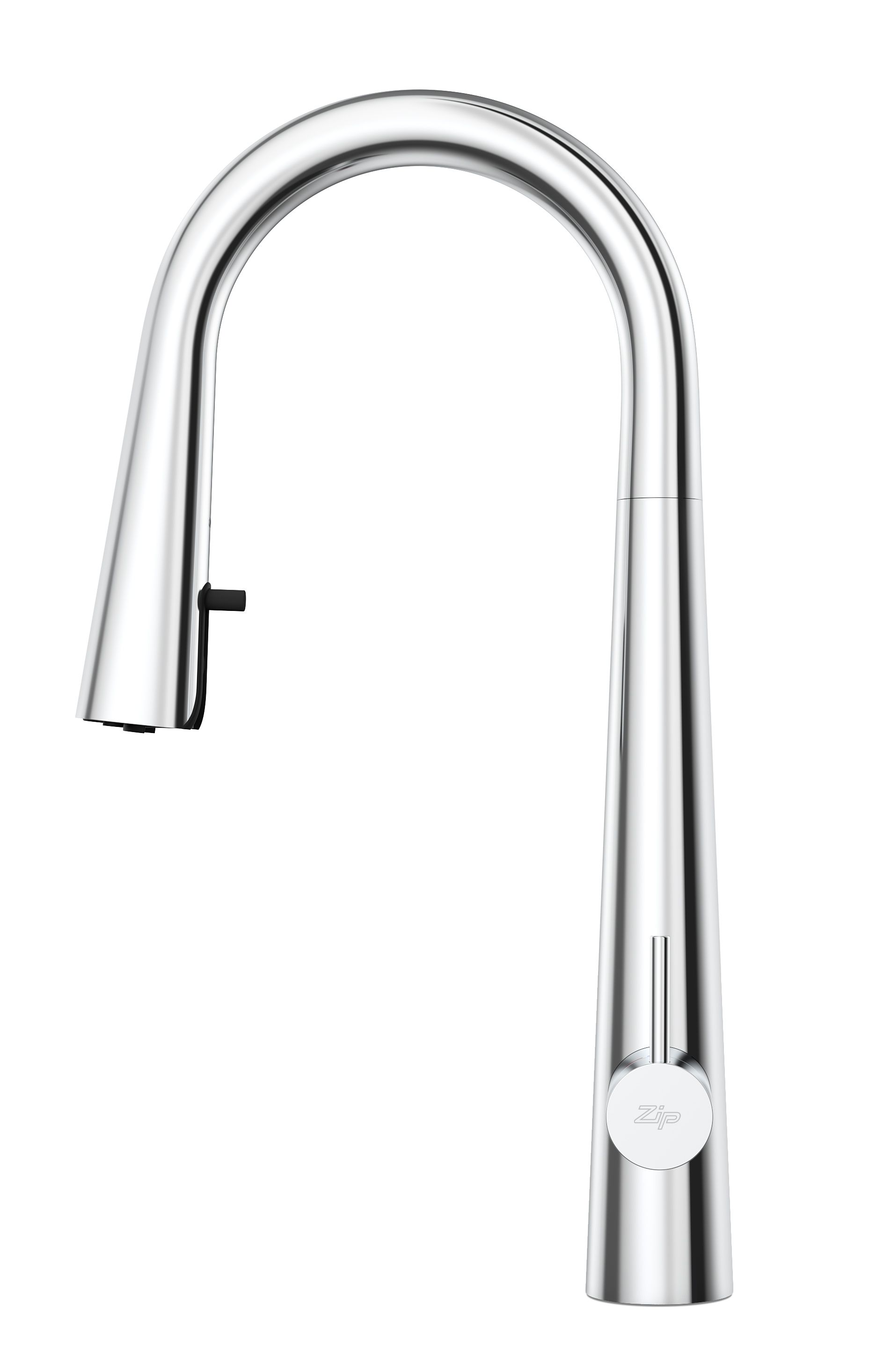

HydroTap G5 BCHA Celsius Plus All-In-One Pull-Out Chrome

Confirm Purchase

Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase

Please purchase a HydroTap first

Confirm Purchase

Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

Is the Zip unit onsite?
Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
Water available to unit
Is stone bench cutting required?
Will your Zip unit be installed over a font or sink?
Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Find your Specialist Retailer

Finish

Please select a finish in order to add the item to cart.

RRP ^$ 8695 ^.00 incl. GST

This product is not available for online sale.
Please click the Find Your Specialist retailer button to find your local specialist showroom.

Boiling

Chilled

Filtered

Hot & Ambient

Unfiltered

H5X784Z00AU

Zip HydroTap Design Range CELSIUS PLUS All-In-One Pull-Out Boiling & Chilled Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required) including the artfully incorporated pull-out sprayer for convenience. The intuitive touch-pad with antimicrobial protection operates the filtered drinking water, while the lever dispenses unfiltered hot and cold water. The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology and 0.2 micron water filtration.

This product is available from selected specialist retailers. Click the "Find your Specialist Retailer" link to find your local showroom.

Manufacturing Code: H5X784Z00AU
Capacity: Residential

Have more questions?

We’re here to help. Contact us for advice or more details.

1800 42 43 44 Email Us Find a Retailer

Product Details

Zip HydroTap Design Range CELSIUS PLUS All-In-One Pull-Out Boiling & Chilled Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required) including the artfully incorporated pull-out sprayer for convenience. The intuitive touch-pad with antimicrobial protection operates the filtered drinking water, while the lever dispenses unfiltered hot and cold water. The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology and 0.2 micron water filtration. This product is available from selected specialist retailers. Click the "Find your Specialist Retailer" link to find your local showroom.

Specifications

Tap: Zip HydroTap Design Range CELSIUS PLUS All-In-One Pull-Out Tap (Chrome)
Water Pressure: Min 250kPa - Max 700kPa
Water Connection: 1/2" BSP (G1/2)
Water Supply Requirements: Cold and Hot
Water Valves: Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating: 1.8kW 220-240V 50Hz
Power Supply: 1 x 10 Amp socket outlet
Dimensions: W280mm x D455mm x H333mm
Product Approvals: WaterMark, RCM, ARC
Wels Rating: 6 Star, 4.5 litres
Warranty: 5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

Quick Guide
Tap Operation Label
Instruction Manual
User Manual

Brochures

Product Brochure

Installation

Installation Requirements

1. Installation and connection of your Zip HydroTap must be carried out by a Zip Certified service technician, observing national and local regulations.

2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1 metre of the product.

3. Zip HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.

4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service. Note that a 50mm hole is required for tap installation.

5. If you live in a hard water area, we recommend installation of a scale filtration kit.

6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com/book-service-visit
