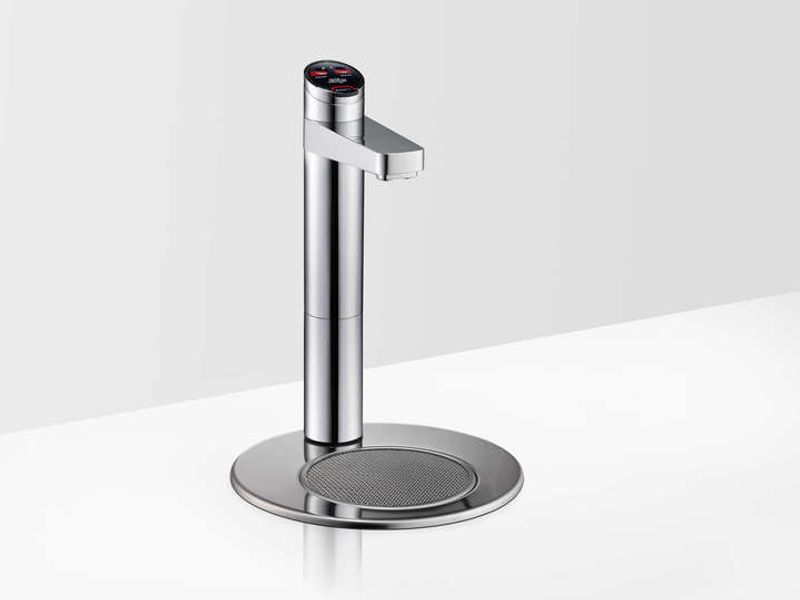

HydroTap G5 B Elite Chrome

Click to Zoom

Find a Retailer
Finish

Please select a finish in order to add the item to cart.

RRP $ 2495 .00 incl. GST
Add to Cart
Boiling
Filtered
H54786Z00AU

Zip HydroTap Design Range Boiling, Filtered water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, SteriTouch® antimicrobial protection impregnated into key water paths for enhanced hygiene, and 0.2 micron water filtration.

Manufacturing Code
H54786Z00AU
Capacity
Residential

Product Details

Zip HydroTap Design Range Boiling, Filtered water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, SteriTouch® antimicrobial protection impregnated into key water paths for enhanced hygiene, and 0.2 micron water filtration.

Specifications

Tap
Zip HydroTap Design Range ELITE Tap (Chrome)
Water Pressure
Min 170kPa - Max 700kPa
Water Connection
1/2" BSP (G1/2)
Water Supply Requirements
Cold
Water Valves
Integrated 500kPa Pressure limiting valve and Dual Check Valve
Power Rating
1.35kW 220-240V 50Hz
Power Supply
1 x 10 Amp socket outlet
Dimensions
W280mm x D313mm x H333mm
Product Approvals
WaterMark, RCM
Warranty
5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Manuals

  • Quick Guide
  • Instruction Manual
  • User Manual

Brochures

  • Product Brochure

Installation

Installation Requirements

'1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com'
  • Installation Detail

Certifications

Filter Performance Images
Health Safety Image
Health Safety Download
Environment ISO Image
Environment ISO Download
Quality ISO Image
Quality ISO Download
CE Image
RCM Image
Watermark
Environmental Product Declaration Brochure
Environmental Product Declaration

BIM Files

  • ArchiCAD Swift Globals Library
  • ArchiCAD Zip Water Library
  • Revit Project File
  • Revit Virtual Showroom

H54786Z00AU Accessories
